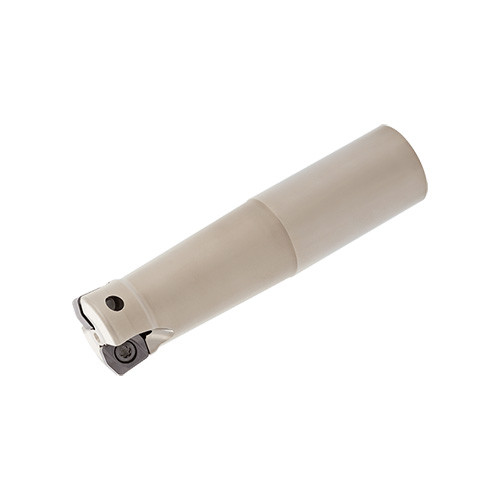

EXN06R032M32.0-02L
Super high feed milling endmills with double sided inserts with 4 edges

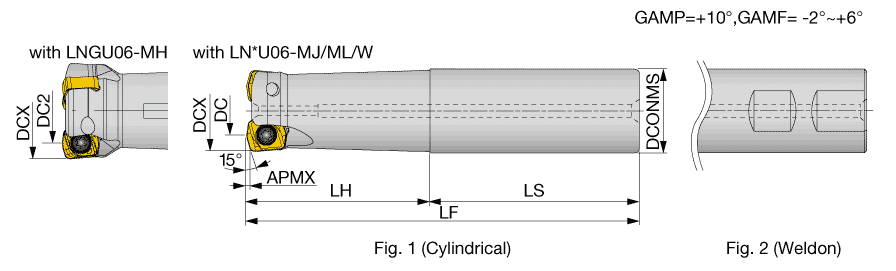

| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 120 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 200 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Fast Feed Face mill |
| Depth of Cut Maximum (APMX) | 1.5 mm | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Overall Length (OAL) | 200 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Master Insert Identification (MIID) | LNMU06X5ZER-MJ | Unit | M |
Product Features
| Family Description | Super high feed milling endmills with double sided inserts with 4 edges | FamilyName | EXN06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.1930
Name
Indexable End Mills
FamilyName
EXN06
BrandName
Tungaloy
Related Documentation
The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.
