HPAV12M032M16R06

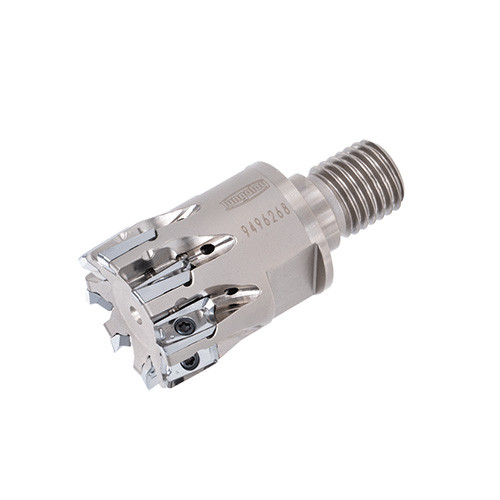

Square shoulder milling cutter, Modular head with TungFlex threaded adaptation

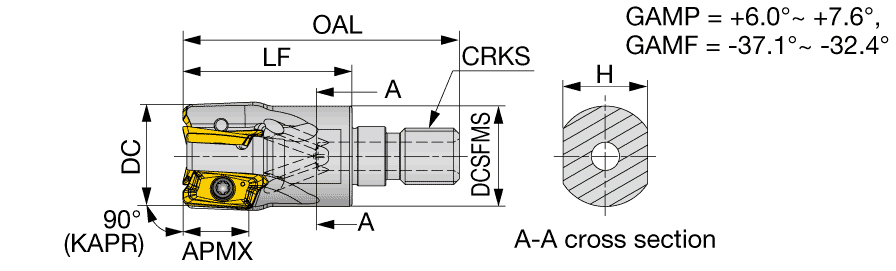

| Cutting Diameter (DC/DCX) | 32 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 32 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 11.5 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Overall Length (OAL) | 63 mm | Shank Height (H) | 22 mm |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 32 mm |
| Master Insert Identification (MIID) | AVMT120408PDER-MM | Unit | M |
| Functional Length (LF) | 40 mm |
Product Features
| Family Description | Square shoulder milling cutter, Modular head with TungFlex threaded adaptation | FamilyName | HPAV12-M |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
HPAV12-M
BrandName
Tungaloy
Related Documentation

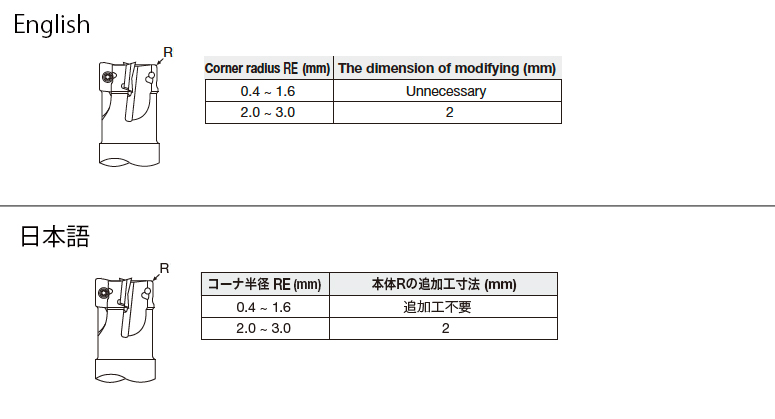

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
