EXN02R010M10.0-02L

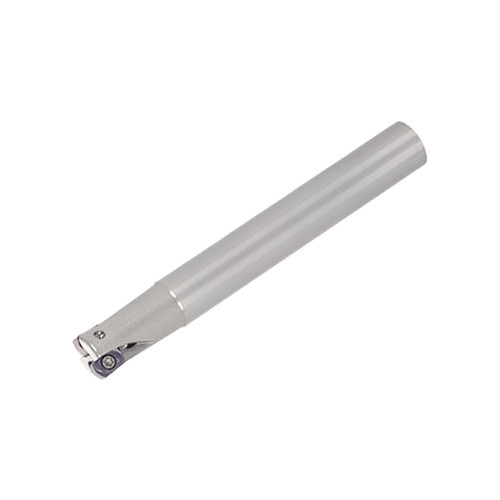

High feed endmill, round shank type, with 4-corner double sided inserts

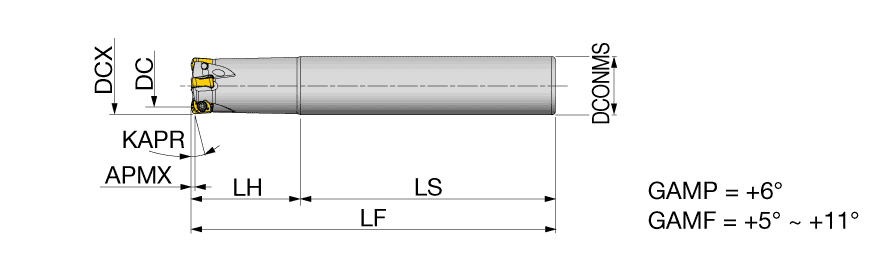

| Cutting Diameter (DC/DCX) | 5.85 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 5.85 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 0.5 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Cutting Diameter Maximum (DCX) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Unit | M |
| Master Insert Identification (MIID) | LNMU0202ZER-MM |
Product Features
| Family Description | High feed endmill, round shank type, with 4-corner double sided inserts | FamilyName | EXN02 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EXN02
BrandName
Tungaloy
