EPS11075RLU

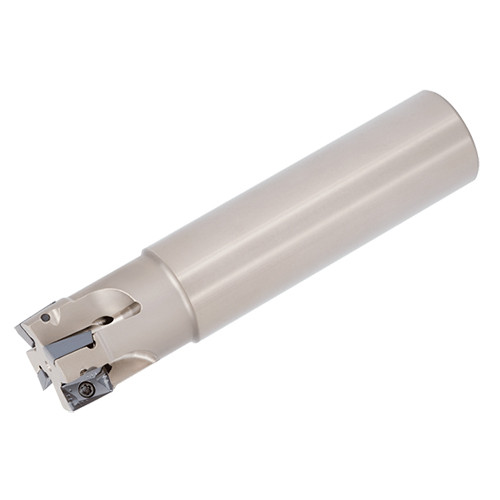

High precision shoulder square endmills with ASMT/ASGT11inserts

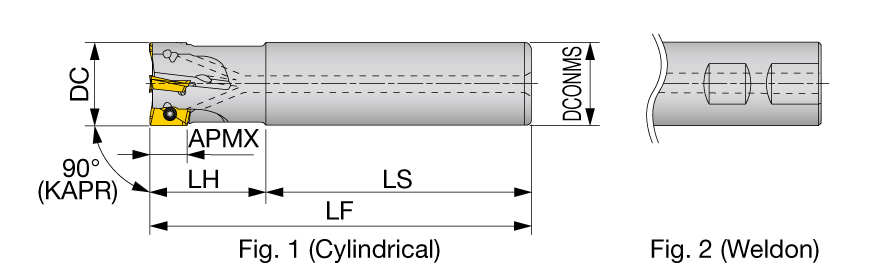

| Cutting Diameter (DC/DCX) | 3/4″ | Head Length (LH) | 2″ |
| Cutting Diameter (DC) | 3/4″ | Functional Length (LF) | 7-1/4″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.417″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 7-1/4″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 5-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 3/4″ |
| Master Insert Identification (MIID) | ASMT11T304PDPR-MJ | Unit | I |
Product Features
| Family Description | High precision shoulder square endmills with ASMT/ASGT11inserts | FamilyName | EPS11 |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.1244
Name
Indexable End Mills
FamilyName
EPS11
BrandName
Tungaloy
Related Documentation

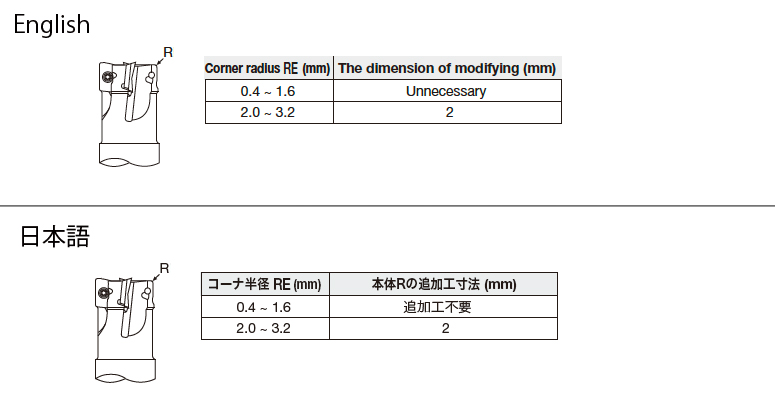

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
