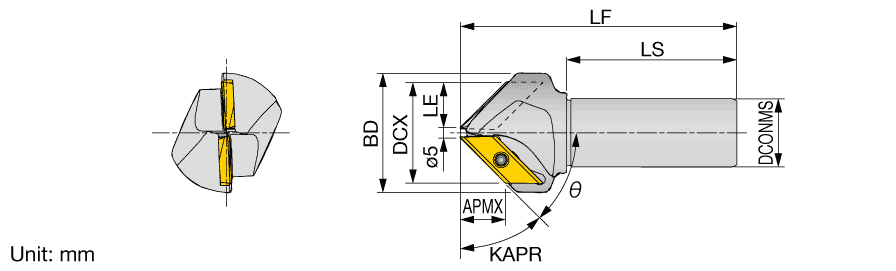

| Cutting Diameter (DC/DCX) | 34 mm | Functional Length (LF) | 130.2 mm |
| Cutting Diameter (DC) | 34 mm | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 1 | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Depth of Cut Maximum (APMX) | 25.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 130.2 mm | Body Material | Steel |
| Application | | Multi Functional tools | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 40 mm |
| Master Insert Identification (MIID) | XCET310404ER | Unit | M |
| Head Length (LH) | 50.2 mm |
Product Features

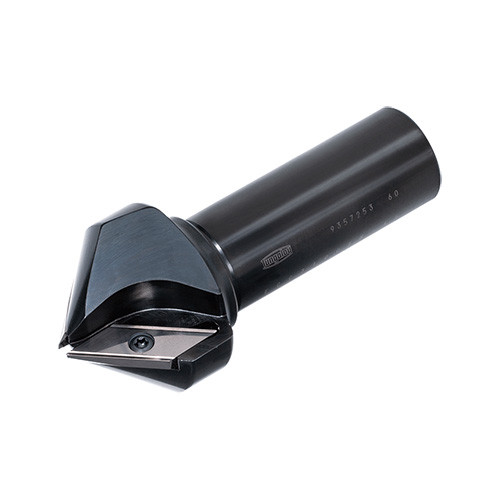

| Family Description | Indexable chamfering cutter with large parallelogram insert | FamilyName | ECC31 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.9150
Name
Indexable End Mills
FamilyName
ECC31
BrandName
Tungaloy
