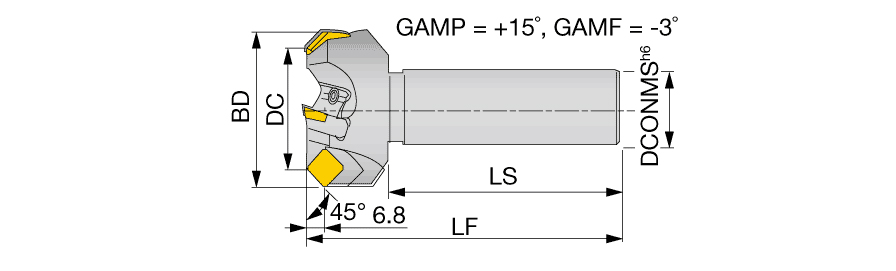

| Cutting Diameter (DC/DCX) | 63 mm | Functional Length (LF) | 115 mm |
| Cutting Diameter (DC) | 63 mm | Tool Type | 45 Facemills |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 115 mm | Body Material | Steel |
| Application | | Face Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 79 mm |
| Master Insert Identification (MIID) | SDEN42ZTNCR | Unit | M |
| Head Length (LH) | 35 mm |
Product Features

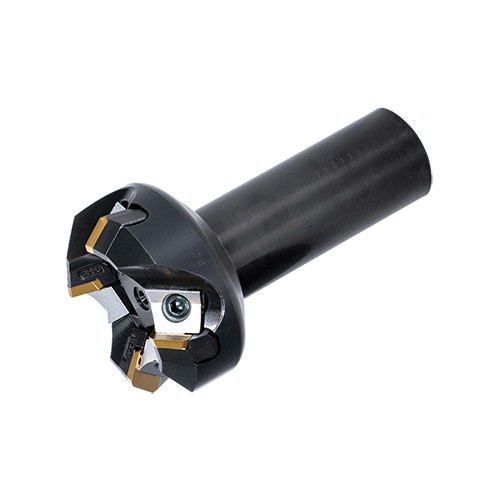

| Family Description | 45 deg endmills with wedge clamped square inserts | FamilyName | EGD4400 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.5560
Name
Indexable End Mills
FamilyName
EGD4400
BrandName
Tungaloy
Related Documentation
Related Items
