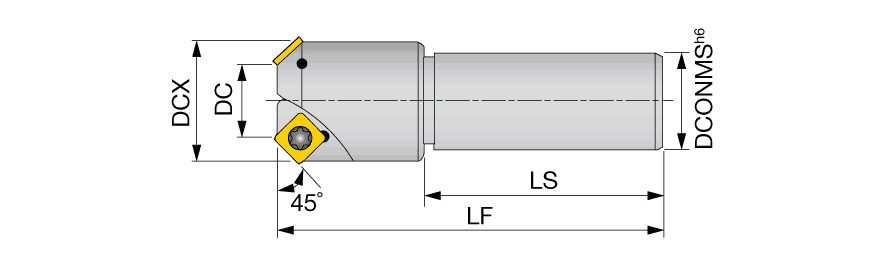

| Cutting Diameter (DC/DCX) | 23 mm | Functional Length (LF) | 130 mm |
| Cutting Diameter (DC) | 23 mm | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 130 mm | Body Material | Steel |
| Application | | Multi Functional tools | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 40.3 mm |
| Master Insert Identification (MIID) | SPMA422FN | Unit | M |
| Head Length (LH) | 50 mm |
Product Features

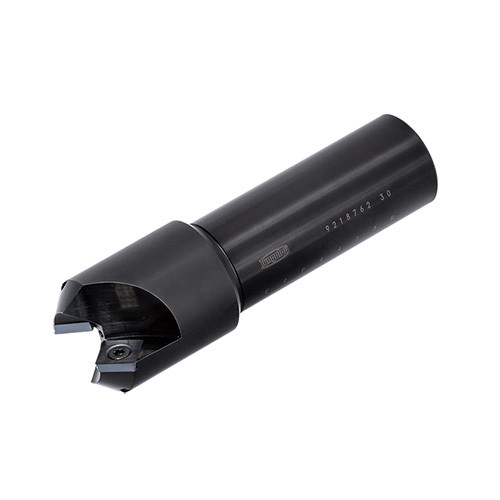

| Family Description | Indexable chamfering cutter with square insert | FamilyName | ECP4400R |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
1.0280
Name
Indexable End Mills
FamilyName
ECP4400R
BrandName
Tungaloy
