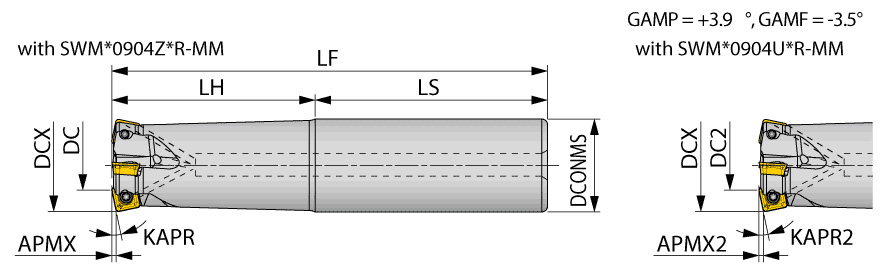

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 100 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 180 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 1.5 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 180 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
| Master Insert Identification (MIID) | SWMT0904ZER-MM |
Product Features

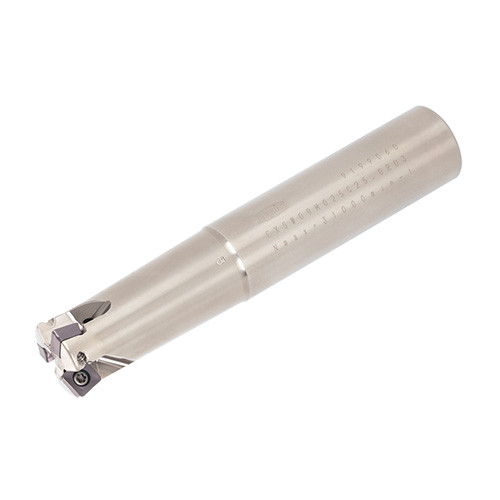

| Family Description | High-feed milling cutters with 4-corner single sided inserts; Shank type | FamilyName | EXSW09 |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EXSW09
BrandName
Tungaloy
