EPAV06M025C20.0R06
Square shoulder endmill, shank type, with screw clamp system

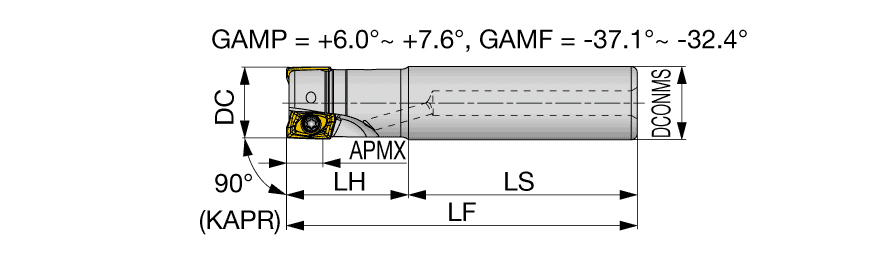

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 115 mm |
| Cutting Item Count (CICT) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 115 mm | Body Material | Steel |
| Shank Type | Round | Shank Length (LS) | 80 mm |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Unit | M |
| Master Insert Identification (MIID) | AVGT060304PBER-MJ |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | FamilyName | EPAV06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3320
Name
Indexable End Mills
FamilyName
EPAV06
BrandName
Tungaloy
