C6EPA15M050R04L080

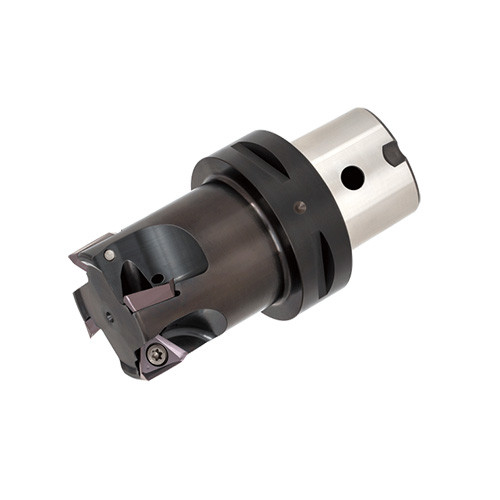

TungTri square shoulder mills, tool dia. 32 - 50 mm

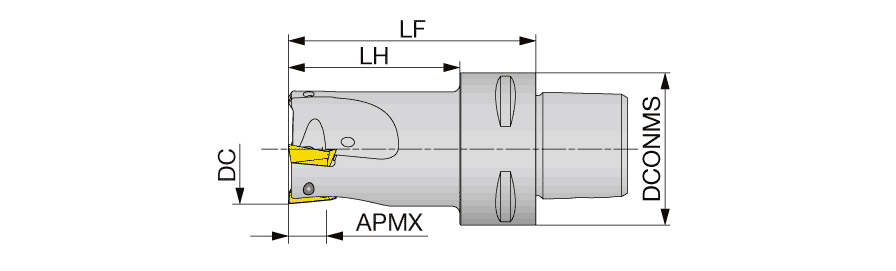

| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 58 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 80 mm |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 15 mm | Measurement Type | Metric |
| Application | | Face contact interface | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Master Insert Identification (MIID) | TOMT150608PDER-MJ | Unit | M |
Product Features
| Family Description | TungTri square shoulder mills, tool dia. 32 - 50 mm | FamilyName | C-EPA |
| Remarks | Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.5540
Name
Indexable End Mills
FamilyName
C-EPA
BrandName
Tungaloy
