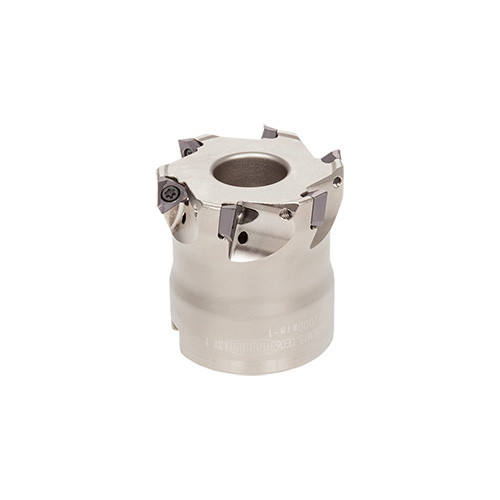

TPA06R032M16.0E05
High precision shoulder square mills with triangular inserts

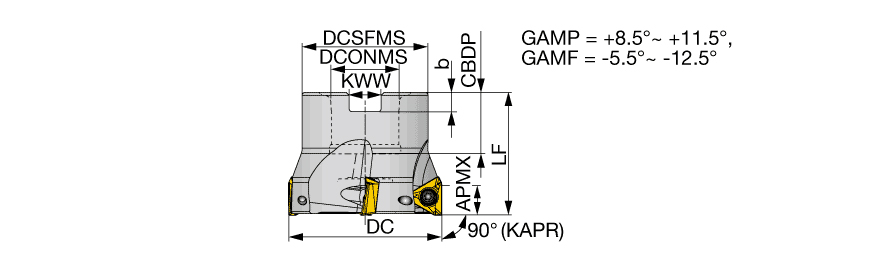

| Cutting Diameter (DC/DCX) | 32 mm | Body Material | Steel |
| Cutting Diameter (DC) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 32 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 5 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm | Functional Length (LF) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 40 mm | Unit | M |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ |
Product Features
| Family Description | High precision shoulder square mills with triangular inserts | FamilyName | TPA06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2530
Name
Indexable Face Mills
FamilyName
TPA06
BrandName
Tungaloy
