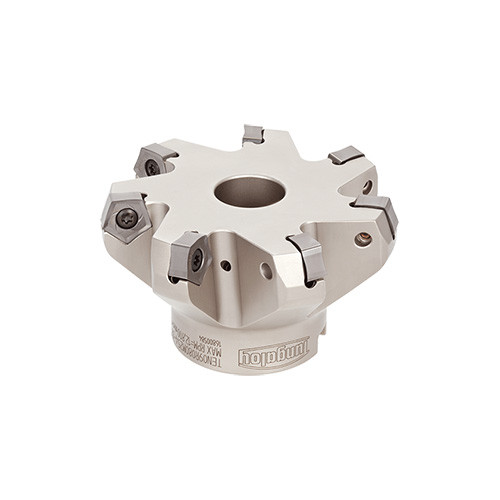

TEN09R063M22.0-06
70deg face mills with double sided pentagonal inserts.
| Cutting Diameter (DC/DCX) | 69 mm | Body Material | Steel |
| Cutting Diameter (DC) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 69 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6.4 mm | Functional Length (LF) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | 75 Facemills |
| Overall Length (OAL) | 40 mm | Unit | M |
| Master Insert Identification (MIID) | PNMU0905GNEN-MJ |
Product Features
| Family Description | 70deg face mills with double sided pentagonal inserts. | FamilyName | TEN09R/L |
| Remarks | APMX may vary with insert type. Please select neutral inserts PN*U0905GNEN ** when using a left hand cutter. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.6180
Name
Indexable Face Mills
FamilyName
TEN09R/L
BrandName
Tungaloy
