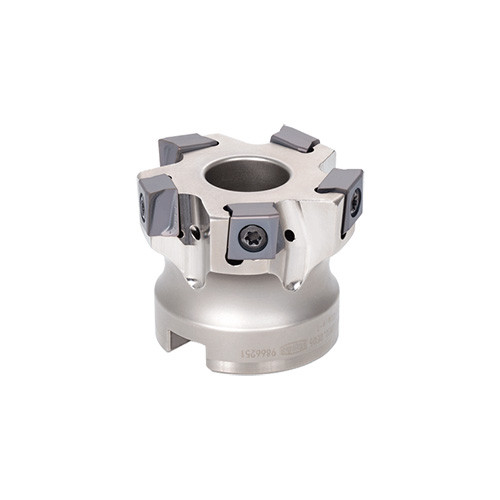

TPM11R100M31.7-11
Square shoulder mills with tangential clamped insert with 4 edges
| Cutting Diameter (DC/DCX) | 100 mm | Body Material | Steel |
| Cutting Diameter (DC) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 100 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 11 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 9.7 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 50 mm | Unit | M |
| Master Insert Identification (MIID) | LMMU110708PNER-MJ |
Product Features
| Family Description | Square shoulder mills with tangential clamped insert with 4 edges | FamilyName | TPM11,16 |
| COO | USA | BrandName | Tungaloy |
Shipping Info
Weight per item
1.6520
Name
Indexable Face Mills
FamilyName
TPM11,16
BrandName
Tungaloy
