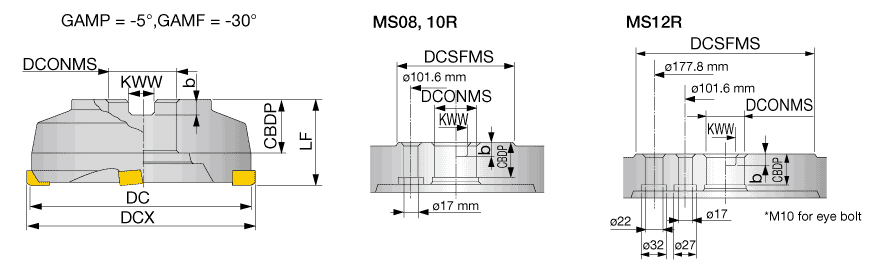

| Cutting Diameter (DC/DCX) | 255 mm | Body Material | Steel |
| Cutting Diameter (DC) | 250 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 255 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 0.1 mm | Functional Length (LF) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 60 mm | Unit | M |
| Master Insert Identification (MIID) | SNAA56FTR |
Product Features

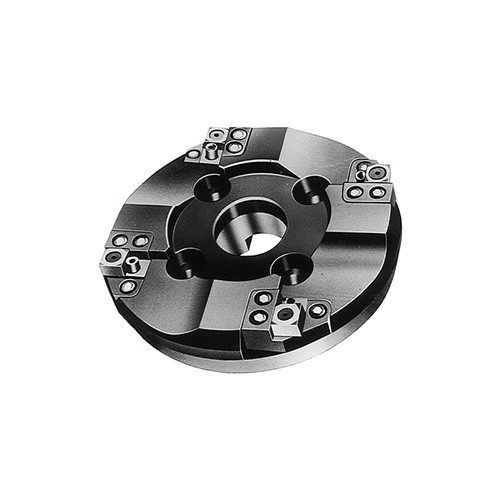

| Family Description | High precision finishing face mill | FamilyName | MS |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
18.1000
Name
Indexable Face Mills
FamilyName
MS
BrandName
Tungaloy
