DPD24100R
High precision shoulder square mills with PCD inserts for aluminum machining

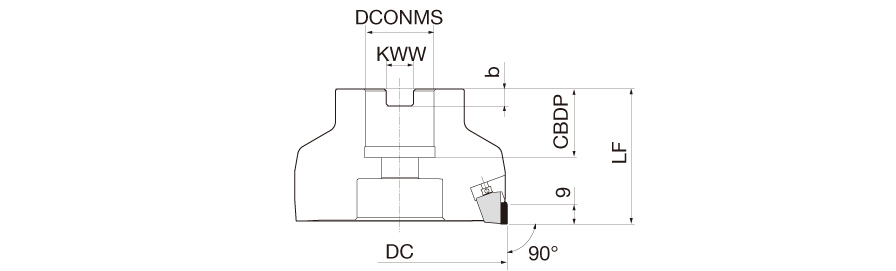

| Cutting Diameter (DC/DCX) | 100 mm | Body Material | Steel |
| Cutting Diameter (DC) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 100 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 7 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Type | 90 Facemills for Al. & HTA |
| Overall Length (OAL) | 50 mm | Unit | M |
| Master Insert Identification (MIID) | YDEN2405PDFR-D |
Product Features
| Family Description | High precision shoulder square mills with PCD inserts for aluminum machining | FamilyName | DPD24 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.5300
Name
Indexable Face Mills
FamilyName
DPD24
BrandName
Tungaloy
