TRD6004R
Face mill with 20mm button insert

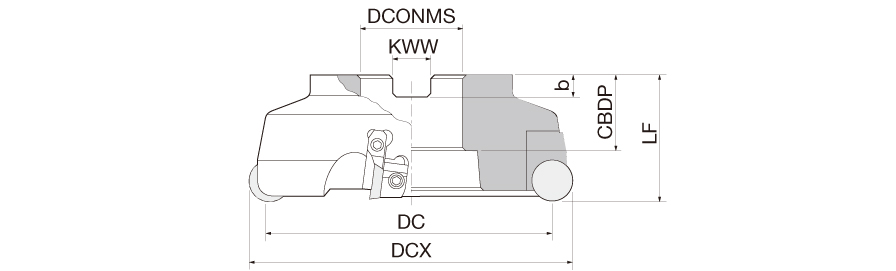

| Cutting Diameter (DC/DCX) | 100 mm | Body Material | Steel |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 100 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 5 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 10 mm | Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Type | Round corner cutters |
| Overall Length (OAL) | 63 mm | Unit | M |
| Master Insert Identification (MIID) | RDKN2004TN |
Product Features
| Family Description | Face mill with 20mm button insert | FamilyName | TRD6000 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.4200
Name
Indexable Face Mills
FamilyName
TRD6000
BrandName
Tungaloy
