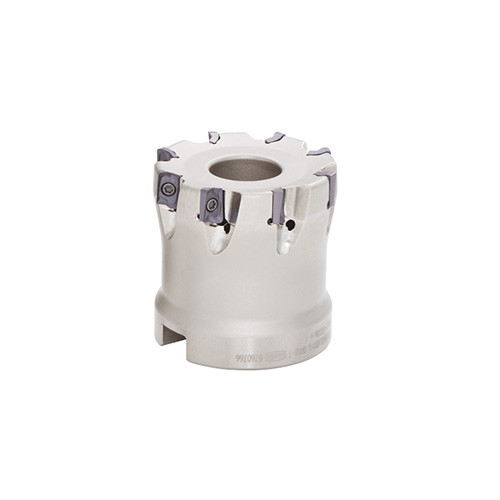

TPAV06M040B16.0R10
Square shoulder mill, bore type, with screw clamp system

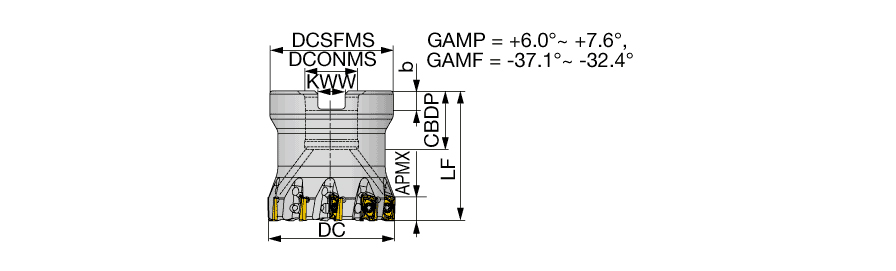

| Cutting Diameter (DC/DCX) | 40 mm | Body Material | Steel |
| Cutting Diameter (DC) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 40 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 10 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm | Functional Length (LF) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | CUTTER - BORE TYPE |
| Overall Length (OAL) | 40 mm | Unit | M |
| Master Insert Identification (MIID) | AVGT060304PBER-MJ |
Product Features
| Family Description | Square shoulder mill, bore type, with screw clamp system | FamilyName | TPAV06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.3530
Name
Indexable Face Mills
FamilyName
TPAV06
BrandName
Tungaloy
