TXLN05M050B22.0R06

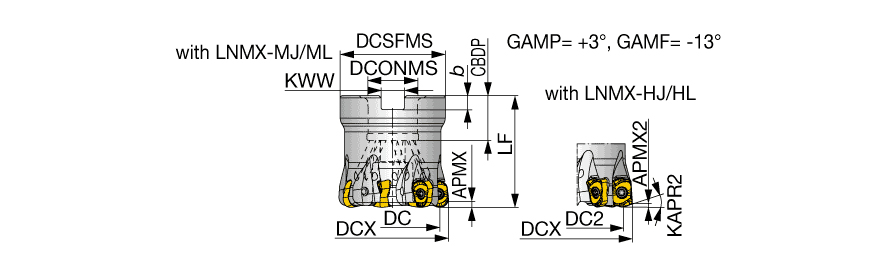

Radius cutter with double-sided insert; Bore type
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | LNMX0506R5-MJ |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | High Feed Milling | Profile Milling | |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features
| Family Description | Radius cutter with double-sided insert; Bore type | FamilyName | TXLN |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TXLN
BrandName
Tungaloy
