TPTN12U2.50B0.75R06

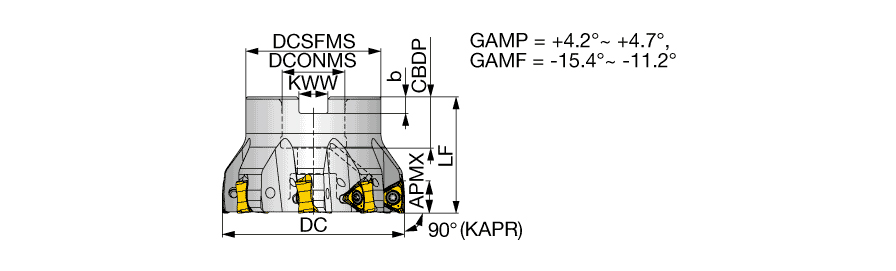

Square Shoulder milling cutters with double-sided triangle insert; Bore Type
| Cutting Diameter (DC/DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.433″ | Functional Length (LF) | 1.575″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | CUTTER - BORE TYPE |
| Overall Length (OAL) | 1.575″ | Unit | I |
| Master Insert Identification (MIID) | TNMU120708PER-MJ |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Bore Type | FamilyName | TPTN12 |
| Remarks | Subtract 0.1 mm (R1.6) or 0.23 mm (R2) to LH and LF measurements when R1.6 or R2 insert is used. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.3977
Name
Indexable Face Mills
FamilyName
TPTN12
BrandName
Tungaloy
