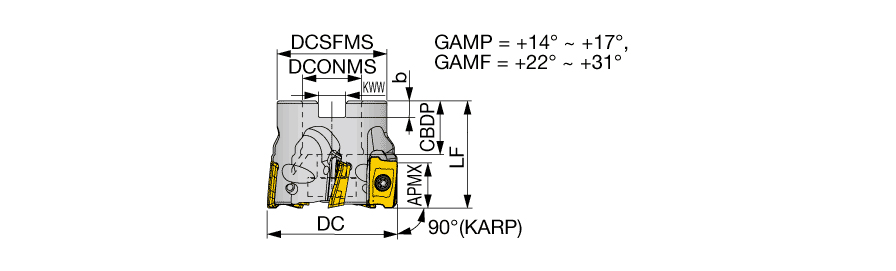

| Cutting Diameter (DC/DCX) | 80 mm | Body Material | Steel |
| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 80 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 7 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 16.7 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 50 mm | Unit | M |
| Master Insert Identification (MIID) | AOMT180508PDPR-MJ |
Product Features

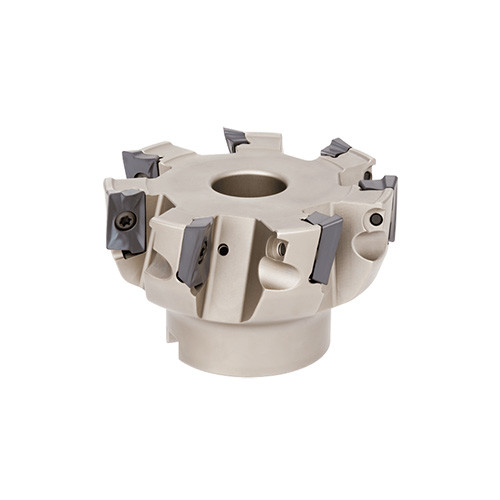

| Family Description | High precision shoulder square milling cutter with AOMT/AOGT18 inserts | FamilyName | TPO18 |
| Remarks | The DC in the table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the diameter is equal to the DC + 0.2 mm. | BrandName | Tungaloy |
| COO | USA |
Shipping Info
Weight per item
0.9880
Name
Indexable Face Mills
FamilyName
TPO18
BrandName
Tungaloy
