PNMU0905GNEN-MJ AH3135
For general purpose, M class, Neutral geometry, Double sided pentagonal insert. Suitable for steels and cast iron. Can be used on Right and Left hand cutters.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.4 mm/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

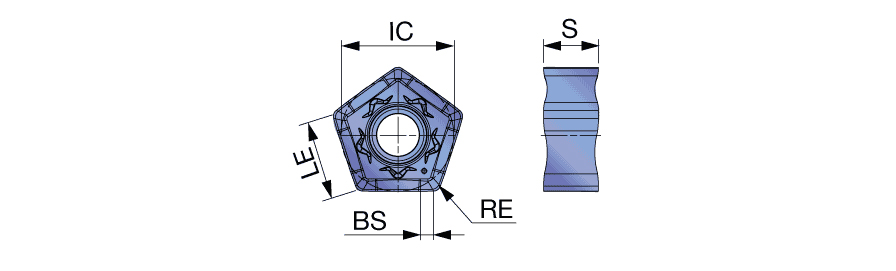

| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 6.4 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Inscribed Circle Diameter (IC) | 12.2 mm | Number of Cutting Edges | 10 |
| Insert Thickness (S) | 6 mm | Cutting Edge Effective Length (LE) | 8.9 mm |
| Wiper Edge Length (BS) | 1.4 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH3135 | Unit | M |
Product Features
| Family Description | For general purpose, M class, Neutral geometry, Double sided pentagonal insert. Suitable for steels and cast iron. Can be used on Right and Left hand cutters. | FamilyName | PNMU0905-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0850
Name
Milling Indexable Inserts
FamilyName
PNMU0905-MJ
BrandName
Tungaloy
