| Applicable Material | | Steel | Stainless Steel | | Cutting Edge Material | Carbide |
| Application | | Multi Functional tools | | Tool Type | 90 indexable endmills |

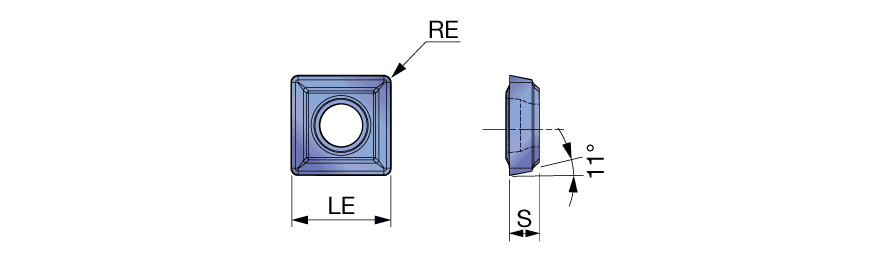

| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Edge Effective Length (LE) | 12.7 mm |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH6225 | Unit | M |
Product Features

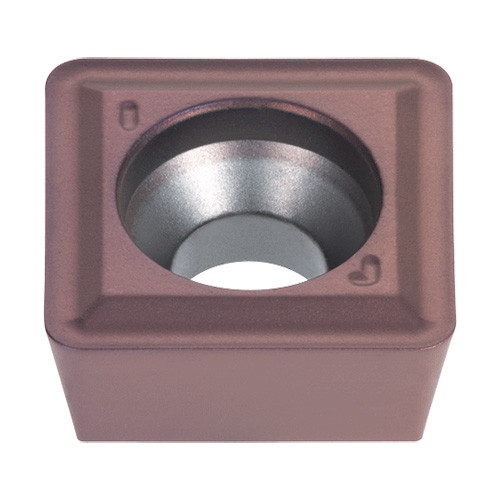

| Family Description | Square insert with chipbreaker | FamilyName | SPMP/SPMM-CG |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
SPMP/SPMM-CG
BrandName
Tungaloy
