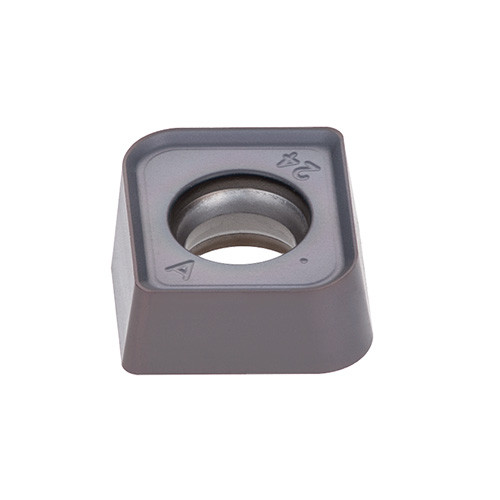

AXHU100420PER-MM AH8015
ExtendedForceMill, bottom insert, 1st recommended for titanium alloy and cast iron parts
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Shoulder Milling | | Tool Type | Double sided Inserts |

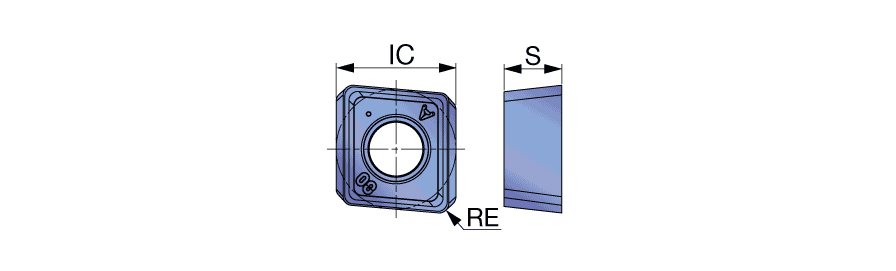

| Corner Radius (RE) | 2 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 11.16 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5.38 mm | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
| Grade | AH8015 |
Product Features
| Family Description | ExtendedForceMill, bottom insert, 1st recommended for titanium alloy and cast iron parts | FamilyName | AXHU10-MM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
AXHU10-MM
BrandName
Tungaloy
Related Documentation

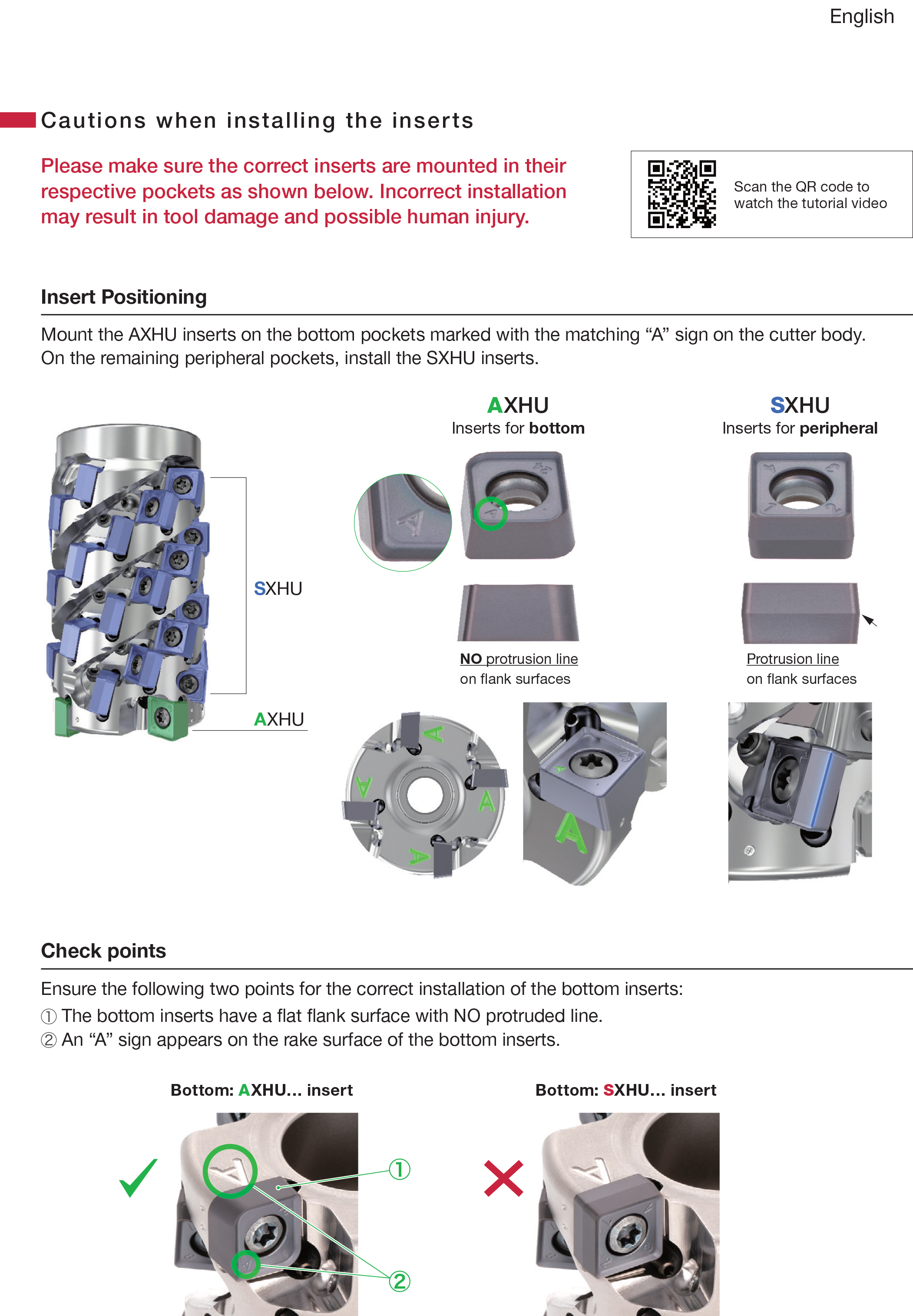

[Insert Positioning] @Mount the AXHU inserts on the bottom pockets marked with the matching "A" sign on the cutter body. @On the remaining peripheral pockets, install the SXHU inserts. @[Check points] @Ensure the following two points for the correct installation of the bottom inserts: @(1) The bottom inserts have a flat flank surface with NO protruded line. @(2) An "A" sign appears on the rake surface of the bottom inserts.
