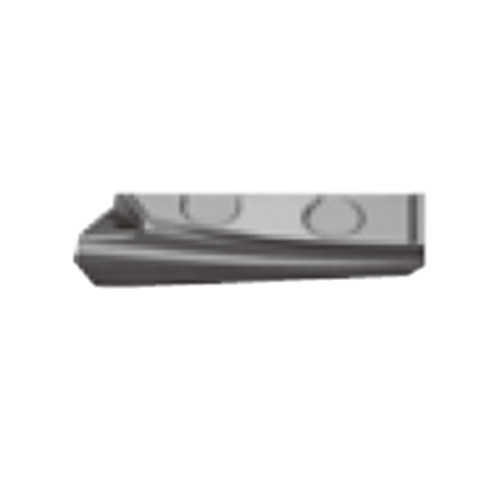

XHGR130208ER-MJ AH730
High precision ground insert for general purpose
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | AH730 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 13 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Number of Cutting Edges | 1 |

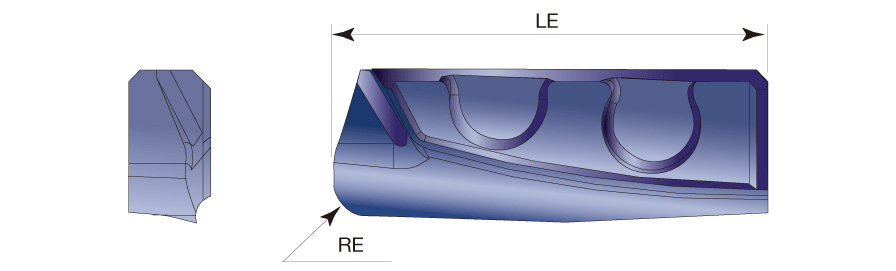

| Depth of Cut Maximum (APMX) | 12 mm | Cutting Edge Effective Length (LE) | 13 mm |
| Insert Width (W1) | 4.8 mm | Measurement Type | Metric |
| Insert Thickness (S) | 1.8 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | High precision ground insert for general purpose | FamilyName | XHGR11/13/18-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0280
Name
Milling Indexable Inserts
FamilyName
XHGR11/13/18-MJ
BrandName
Tungaloy
