AVMT040204PPER-MM AH3225
Single-sided insert with 2 edges and MM chipbreaker for general purpose use

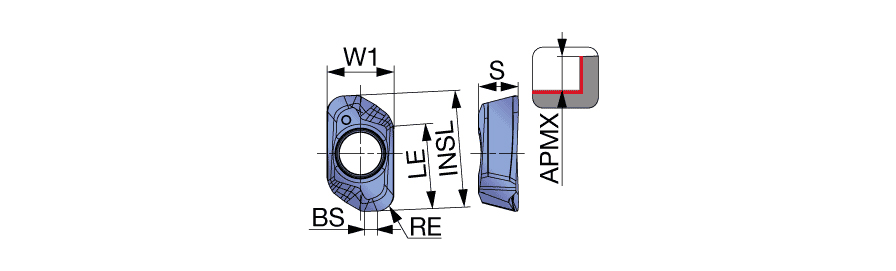

| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlSiCrN |
| Application | | Shoulder Milling | | Grade | AH3225 |
| Insert Length (INSL) | 6.05 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 2 |
| Depth of Cut Maximum (APMX) | 4 mm | Cutting Edge Effective Length (LE) | 4.4 mm |
| Insert Width (W1) | 3.5 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.1 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 1 mm | Unit | M |
Product Features
| Family Description | Single-sided insert with 2 edges and MM chipbreaker for general purpose use | FamilyName | AVMT0402-MM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
AVMT0402-MM
BrandName
Tungaloy
