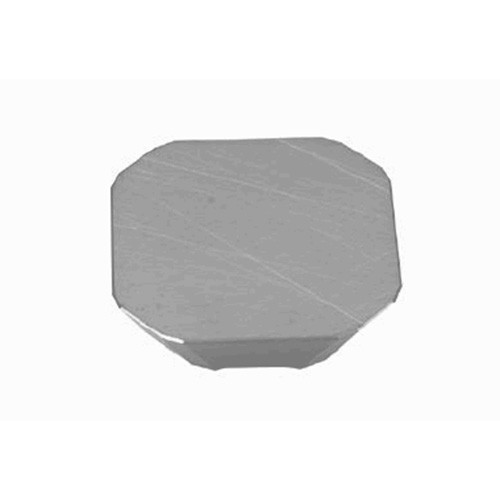

SEKN1504AGTN T3130
| Applicable Material | | Steel | Stainless Steel | | Grade | T3130 |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 15.875 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 15.875 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 1.6 mm | Unit | M |
| Coating | TiCN+Al2O3+TiN |
Product Features

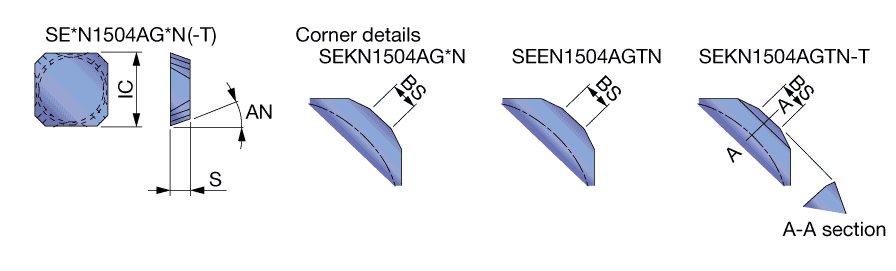

| Family Description | Flat-top square insert with 20deg relief angle, for large depth of cut | FamilyName | SECN/SEEN/SEKN 1504 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1400
Name
Milling Indexable Inserts
FamilyName
SECN/SEEN/SEKN 1504
BrandName
Tungaloy
