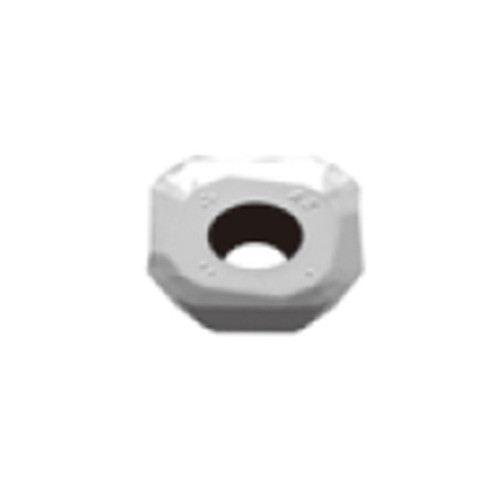

SWGT13T3AFFR-AJ KS05F
For aluminum machining with excellent shapness
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

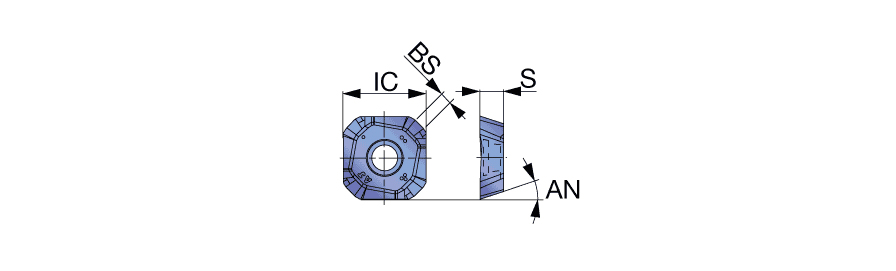

| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 14.1 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 14.1 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 4 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | KS05F |
Product Features
| Family Description | For aluminum machining with excellent shapness | FamilyName | SWGT13T3-AJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0760
Name
Milling Indexable Inserts
FamilyName
SWGT13T3-AJ
BrandName
Tungaloy
