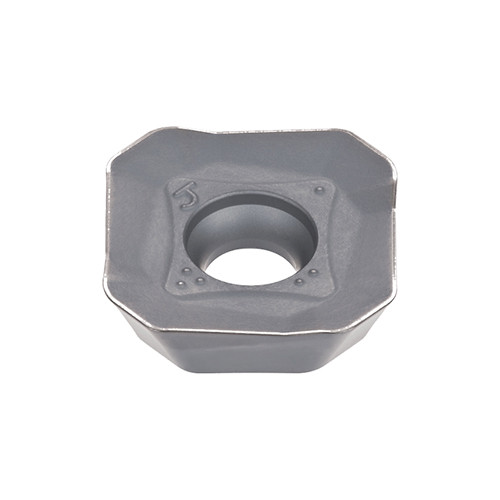

SWMT13T3AFPR-MJ AH120
For general purpose. Sharp edge provides low cutting force.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 1.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 13.9 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 13.9 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 4 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | For general purpose. Sharp edge provides low cutting force. | FamilyName | SWMT13T3-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0750
Name
Milling Indexable Inserts
FamilyName
SWMT13T3-MJ
BrandName
Tungaloy
