| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | High Feed Milling | | Tool Type | Single sided Inserts |

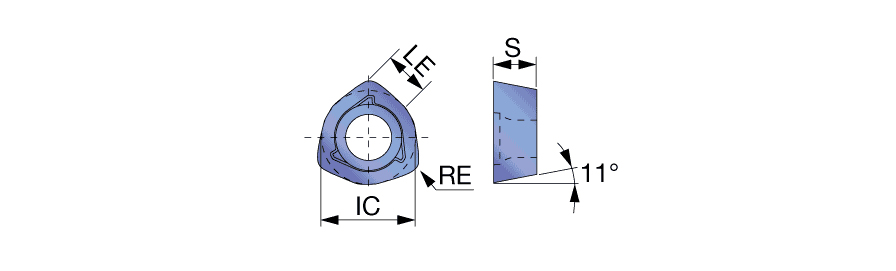

| Corner Radius (RE) | 1.5 mm | Number of Cutting Edges | 3 |
| Depth of Cut Maximum (APMX) | 1.5 mm | Cutting Edge Effective Length (LE) | 8 mm |
| Inscribed Circle Diameter (IC) | 12.87 mm | Measurement Type | Metric |
| Insert Thickness (S) | 6.35 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH120 |
Product Features
| Family Description | Trigon insert with MH chipbreaker for heavy milling | FamilyName | WPMT05/06/08/09-MH |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1220
Name
Milling Indexable Inserts
FamilyName
WPMT05/06/08/09-MH
BrandName
Tungaloy
