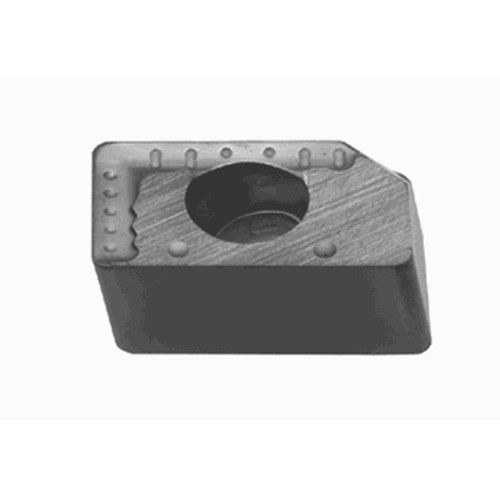

XXMU16X508PR-MJ AH140
Unique shape insert for both central and peripheral edge
| Applicable Material | | Steel | Stainless Steel | | Grade | AH140 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

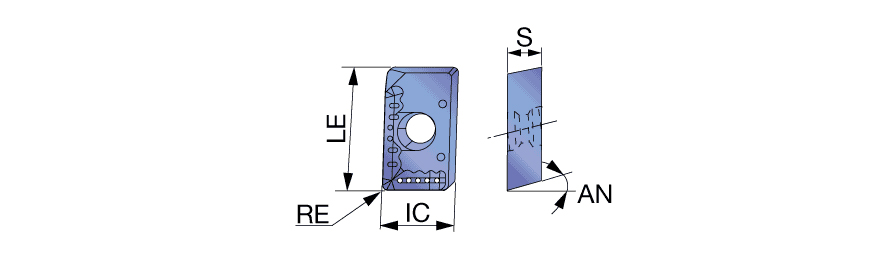

| Insert Length (INSL) | 16.8 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Number of Cutting Edges | 2 |
| Depth of Cut Maximum (APMX) | 15 mm | Cutting Edge Effective Length (LE) | 16.8 mm |
| Insert Width (W1) | 11.1 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 11.1 mm | Body Material | Carbide |
| Insert Thickness (S) | 5 mm | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Unique shape insert for both central and peripheral edge | FamilyName | XXMU-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1260
Name
Milling Indexable Inserts
FamilyName
XXMU-MJ
BrandName
Tungaloy
