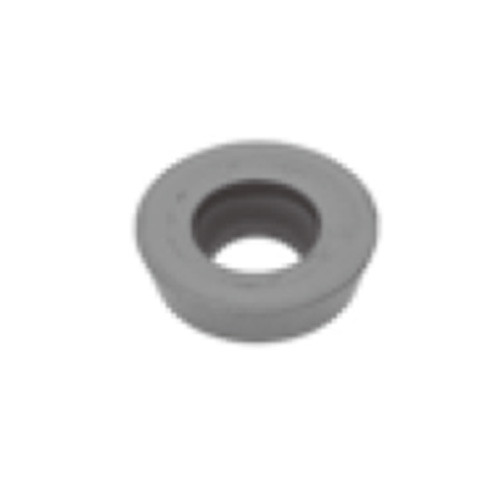

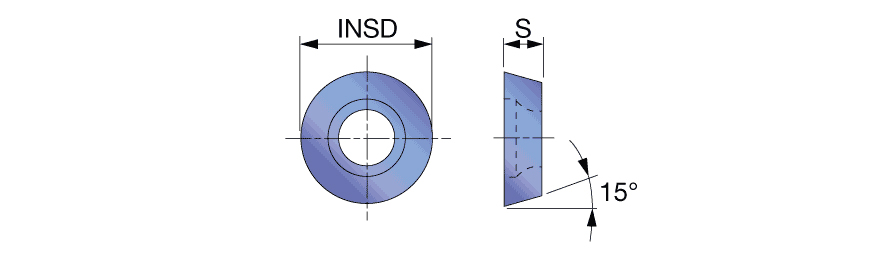

RDMW0702M0 AH120
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 3.5 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 3.5 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.38 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Flat-top button insert with 2.5mm, 3.5mm, or 5mm radius | FamilyName | RDMW05/07/10 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0200
Name
Milling Indexable Inserts
FamilyName
RDMW05/07/10
BrandName
Tungaloy
