| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Face Milling | | Cutting Edge Material | PCD |

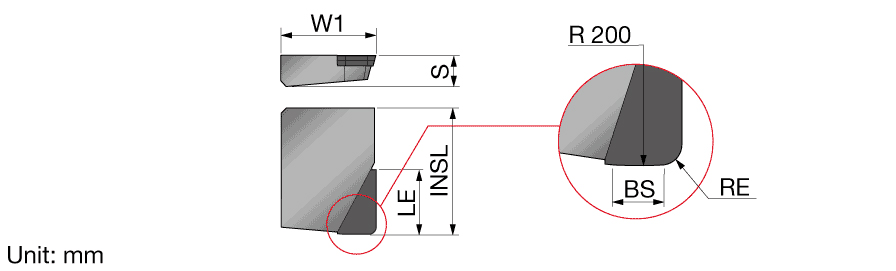

| Insert Length (INSL) | 12.7 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Depth of Cut Maximum (APMX) | 4.5 mm | Number of Cutting Edges | 1 |
| Insert Width (W1) | 9.5 mm | Cutting Edge Effective Length (LE) | 6.5 mm |
| Insert Thickness (S) | 3.1 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2.4 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | DX110 |
Product Features

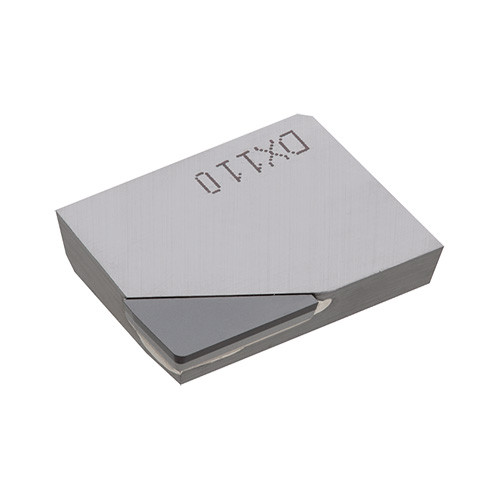

| Family Description | PCD rounded corner insert with wiper | FamilyName | YDEN0603**PDFR-D |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
YDEN0603**PDFR-D
BrandName
Tungaloy
