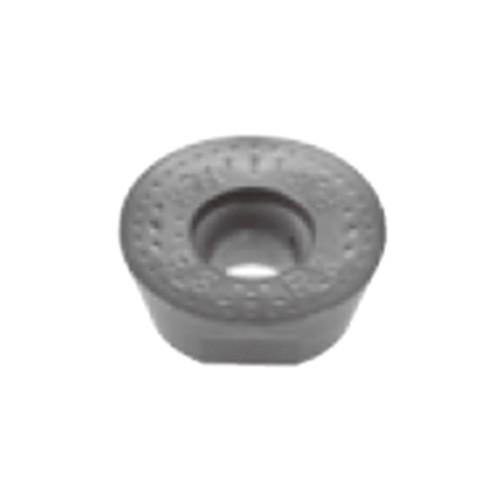

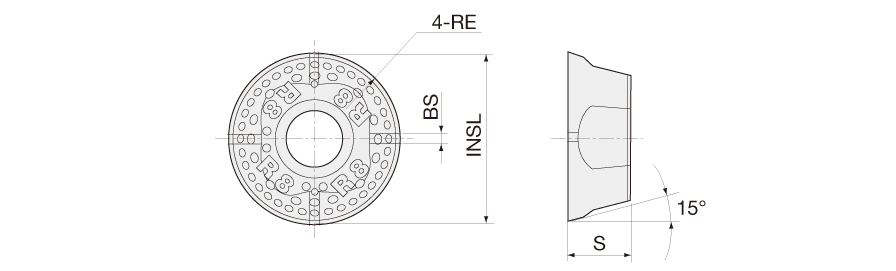

RDMT1204ZDPN-MJ AH330
| Applicable Material | | Steel | | Grade | AH330 |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 12.8 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 6 mm | Number of Cutting Edges | 4 |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.8 mm | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Button insert with MJ chipbreaker | FamilyName | RDMT12/16-MJ-TUN6810231 -M |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.132
Name
Milling Indexable Inserts
FamilyName
RDMT12/16-MJ-TUN6810231 -M
BrandName
Tungaloy
