| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |
| Application | | Face Milling | | Cutting Edge Material | PCD |

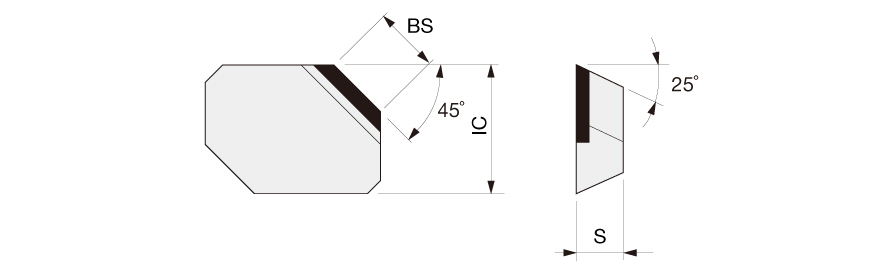

| Insert Length (INSL) | 16.5 mm | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 12.2 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 5.3 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | PCD wiper insert for THF4400IA / 5400IA | FamilyName | WFCN42/53ZFR-DIA |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0170
Name
Milling Indexable Inserts
FamilyName
WFCN42/53ZFR-DIA
BrandName
Tungaloy
