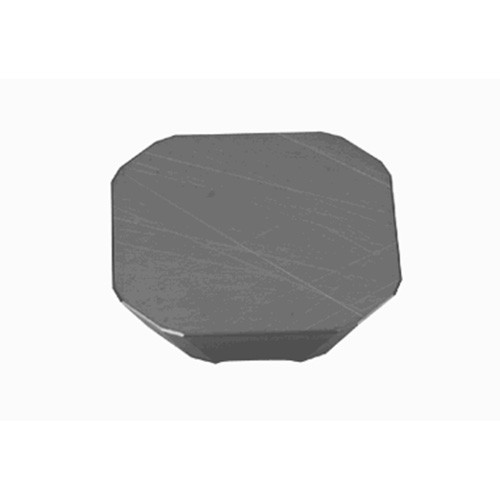

SECN1203AGFN TH10
Flat-top square insert with 20deg relief angle for 45deg corner angle milling cutter

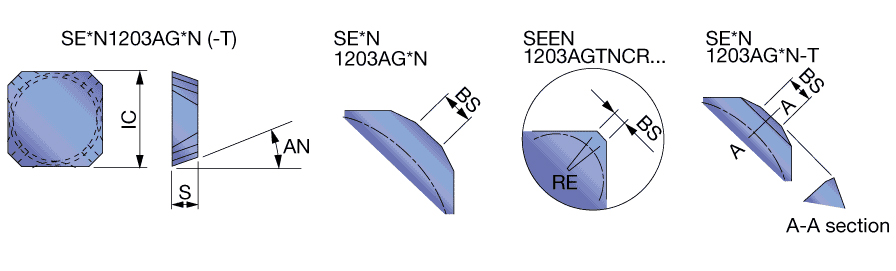

| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | TH10 |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 12.7 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 2.4 mm | Unit | M |
| Coating | Uncoated |
Product Features
| Family Description | Flat-top square insert with 20deg relief angle for 45deg corner angle milling cutter | FamilyName | SECN/SEEN/SEKN 1203 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0700
Name
Milling Indexable Inserts
FamilyName
SECN/SEEN/SEKN 1203
BrandName
Tungaloy
