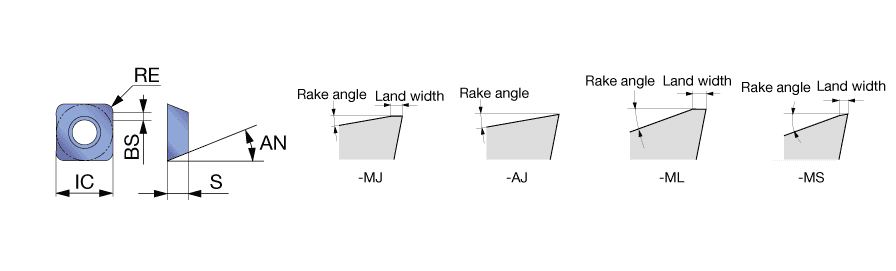

| Applicable Material | | Steel | | Grade | AH330 |
| Corner Radius (RE) | 0.8 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 1.4 mm | Unit | M |
| Coating | TiAlN |
Product Features

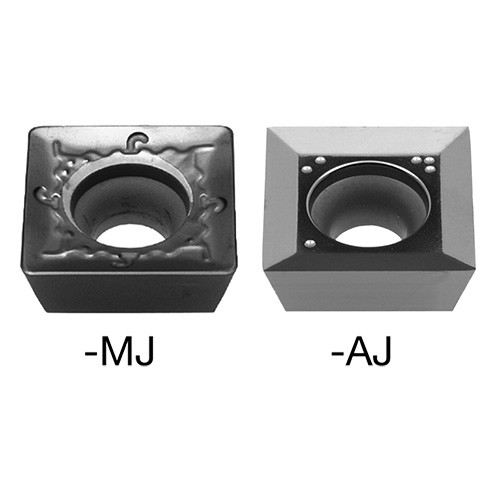

| Family Description | Single-sided square insert with 4 cutting edges, for TPD12 and EPD12 milling cutters | FamilyName | SDMT/SDGT1204PD |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0630
Name
Milling Indexable Inserts
FamilyName
SDMT/SDGT1204PD
BrandName
Tungaloy
