| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | T1215 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |

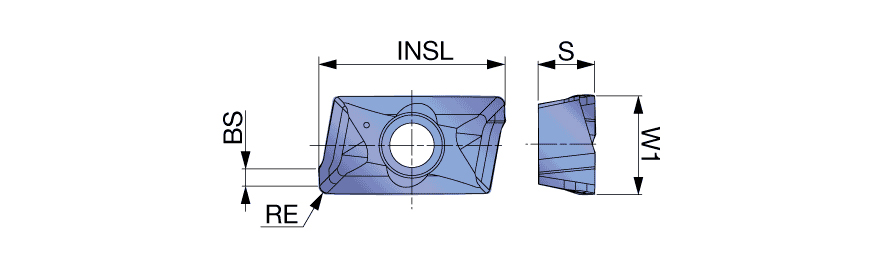

| Insert Length (INSL) | 12.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 10.6 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Width (W1) | 6.7 mm | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 6.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.7 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.5 mm | Unit | M |
| Coating | TiCN+Al2O3+TiN |
Product Features

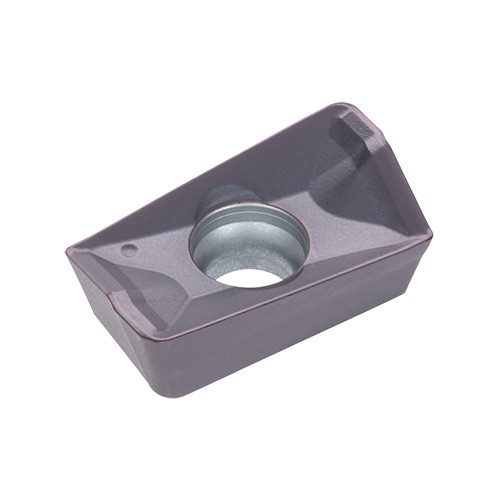

| Family Description | High performance insert with MJ chipbreaker for general purpose | FamilyName | ASMT11-MJ |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
ASMT11-MJ
BrandName
Tungaloy
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
