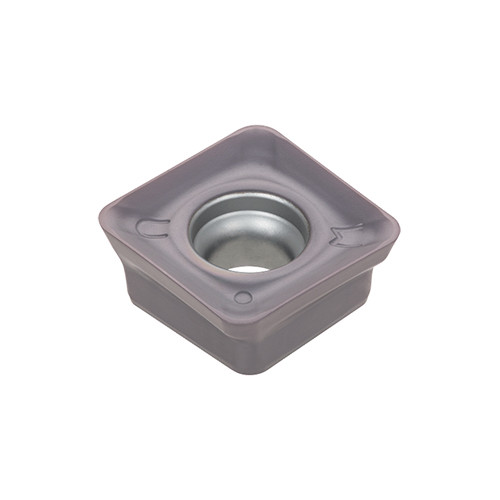

SWMT1506UER-MM AH3135
Single-sided square insert with MM chipbreaker for general purpose use. Low entering angle type. Suitable for difficult-to-machine materials.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 2 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 16.27 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 16.27 mm | Cutting Edge Effective Length (LE) | 16.27 mm |
| Insert Thickness (S) | 6.8 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH3135 | Unit | M |
Product Features
| Family Description | Single-sided square insert with MM chipbreaker for general purpose use. Low entering angle type. Suitable for difficult-to-machine materials. | FamilyName | SWMT1506U-MM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
SWMT1506U-MM
BrandName
Tungaloy
