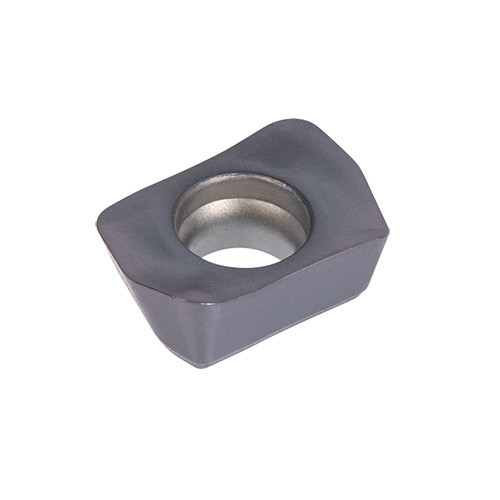

LSMT0202ZER-HM AH8015
Single-sided inserts with 2 edges. High feed inserts. First choice insert for various applications including slotting, pocketing, or for long reach areas.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.8 mm/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

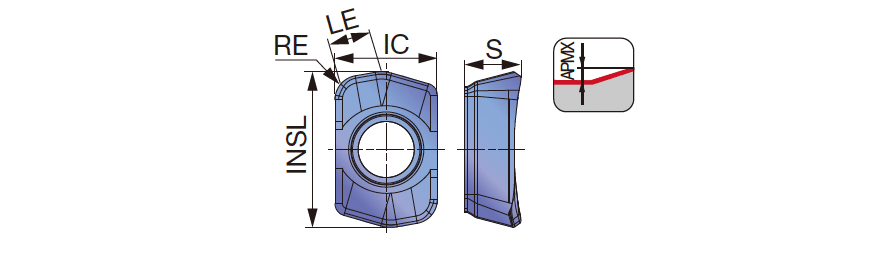

| Insert Length (INSL) | 6.4 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 0.5 mm | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 4.2 mm | Cutting Edge Effective Length (LE) | 1.7 mm |
| Insert Thickness (S) | 2.3 mm | Measurement Type | Metric |
| Coating | AlTiN | Body Material | Carbide |
| Grade | AH8015 | Unit | M |
Product Features
| Family Description | Single-sided inserts with 2 edges. High feed inserts. First choice insert for various applications including slotting, pocketing, or for long reach areas. | FamilyName | LSMT-HM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
LSMT-HM
BrandName
Tungaloy
