| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Multi Functional tools | | Tool Type | Single sided Inserts |

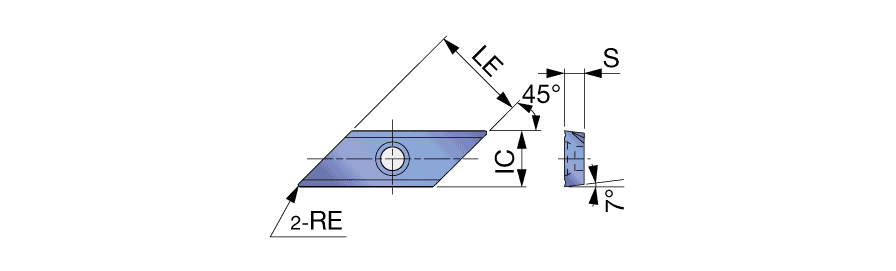

| Corner Radius (RE) | 0.4 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 12.7 mm | Cutting Edge Effective Length (LE) | 22 mm |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.5 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH3135 |
Product Features
| Family Description | Suitable for wide range of chamfering size | FamilyName | XCET31 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
XCET31
BrandName
Tungaloy
