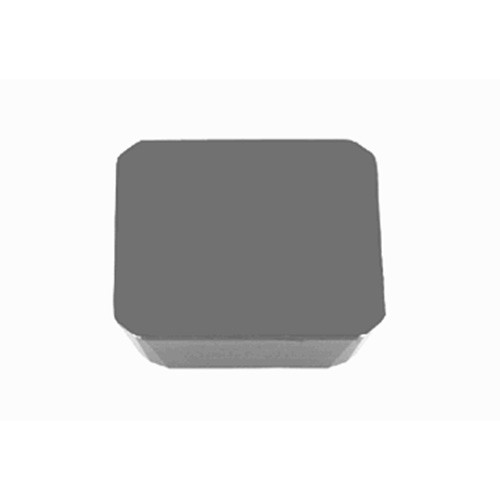

SDEN42ZTN T1215

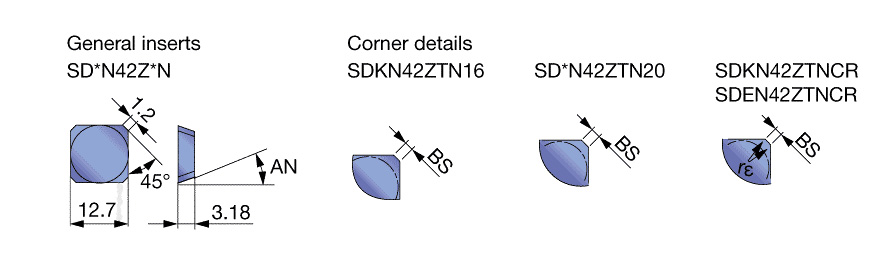

Flat-top square insert with 15deg relief angle for 45 deg corner angle
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | T1215 |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 12.7 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm | Body Material | Carbide |
| Wiper Edge Length (BS) | 1.2 mm | Unit | M |
| Coating | TiCN+Al2O3+TiN |
Product Features
| Family Description | Flat-top square insert with 15deg relief angle for 45 deg corner angle | FamilyName | SDCN/SDEN/SDKN 42Z |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
SDCN/SDEN/SDKN 42Z
BrandName
Tungaloy
