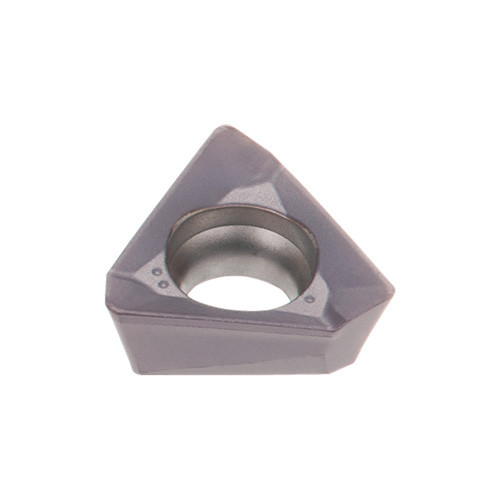

TOMT060308PDER-MJ T3225
High performance insert with MJ chipbreaker for general purpose
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

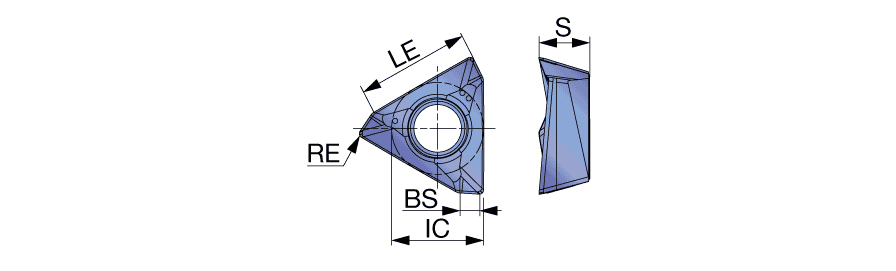

| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 6 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 5.6 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3.2 mm | Cutting Edge Effective Length (LE) | 6.2 mm |
| Wiper Edge Length (BS) | 0.8 mm | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T3225 | Unit | M |
Product Features
| Family Description | High performance insert with MJ chipbreaker for general purpose | FamilyName | TOMT06-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
TOMT06-MJ
BrandName
Tungaloy
