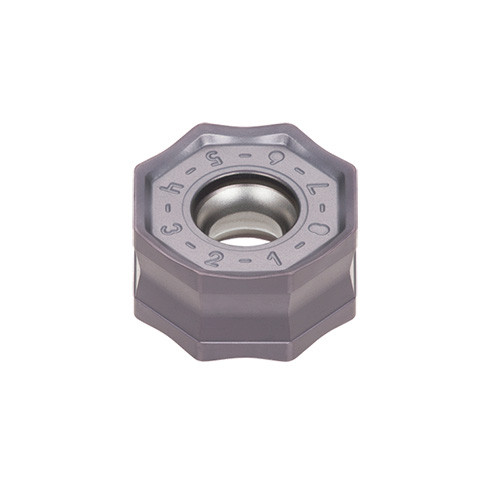

ONGU0507ANEN-MJ AH120
Double-sided octagonal inserts, G class, with 16 edges and MJ chipbreaker
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.5 mm/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

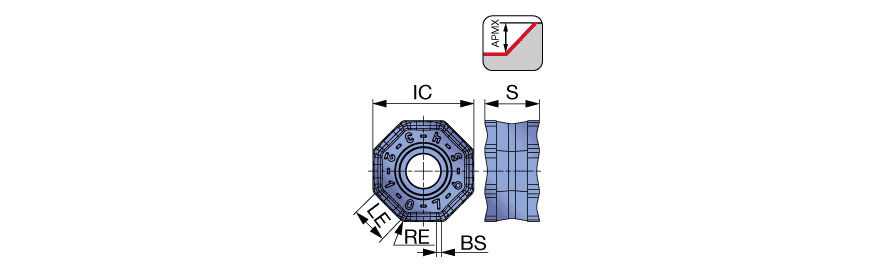

| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 3.4 mm | Number of Cutting Edges | 16 |
| Inscribed Circle Diameter (IC) | 13 mm | Cutting Edge Effective Length (LE) | 4.9 mm |
| Insert Thickness (S) | 7 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.7 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH120 |
Product Features
| Family Description | Double-sided octagonal inserts, G class, with 16 edges and MJ chipbreaker | FamilyName | ONGU-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1200
Name
Milling Indexable Inserts
FamilyName
ONGU-MJ
BrandName
Tungaloy
