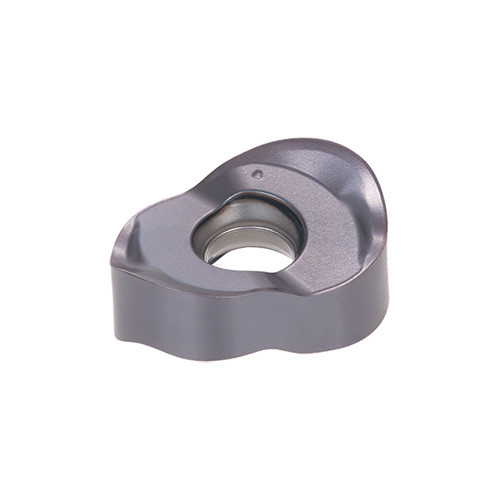

LNMX0405R4-MJ AH3135
Double-sided radius insert with 4 edges and MJ chipbreaker
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH3135 |
| Application | | Profile Milling | | Maximum Feed per Tooth (fz(max)) | 0.6 mm/tooth |
| Insert Length (INSL) | 12 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 4 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 4 mm | Number of Cutting Edges | 4 |
| Insert Width (W1) | 8.2 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 8.2 mm | Body Material | Carbide |
| Insert Thickness (S) | 5.6 mm | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Double-sided radius insert with 4 edges and MJ chipbreaker | FamilyName | LNMX-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0450
Name
Milling Indexable Inserts
FamilyName
LNMX-MJ
BrandName
Tungaloy
