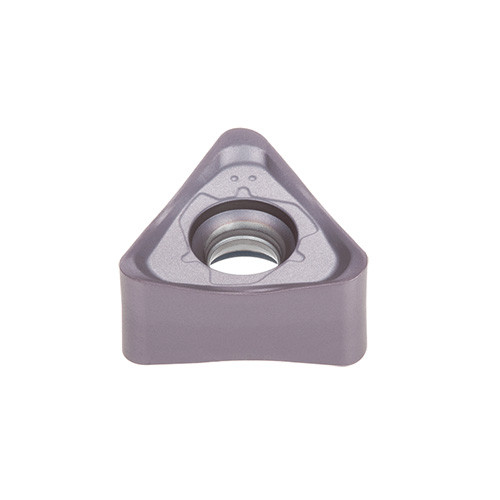

TNMU1207R16PER-MJ AH120
M-class, Double-sided triangle insert with 6 edges and MJ chipbreaker
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

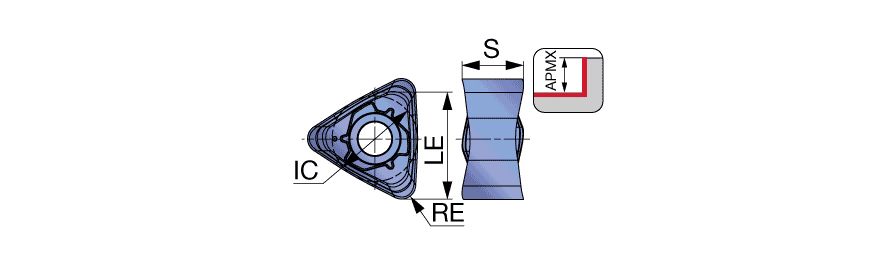

| Corner Radius (RE) | 1.6 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 11 mm | Number of Cutting Edges | 6 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Edge Effective Length (LE) | 12 mm |
| Insert Thickness (S) | 6.88 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 | Unit | M |
Product Features
| Family Description | M-class, Double-sided triangle insert with 6 edges and MJ chipbreaker | FamilyName | TNMU12-R-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0920
Name
Milling Indexable Inserts
FamilyName
TNMU12-R-MJ
BrandName
Tungaloy
