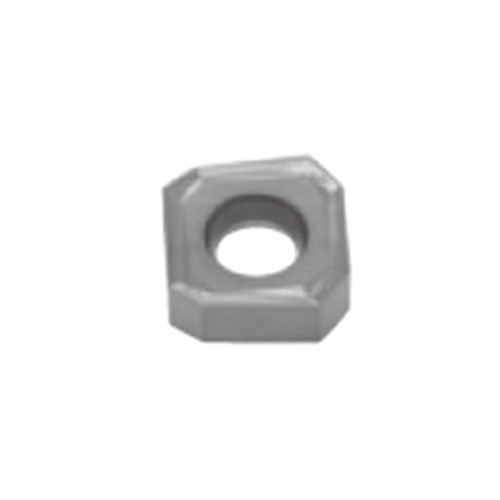

SNMU1706ANTR-ML AH3135
Double-sided square insert with 8 cutting edges, for large depth of cut

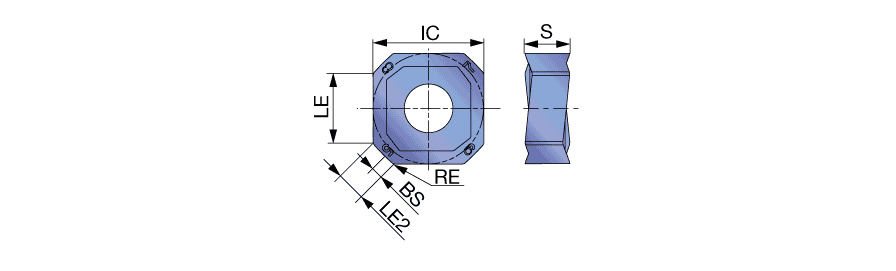

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.4 mm/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 7.5 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Width (W1) | 4.4 mm | Number of Cutting Edges | 8 |
| Inscribed Circle Diameter (IC) | 17.3 mm | Cutting Edge Effective Length (LE) | 11 mm |
| Insert Thickness (S) | 6.98 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1.8 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH3135 |
Product Features
| Family Description | Double-sided square insert with 8 cutting edges, for large depth of cut | FamilyName | SNMU/SNHU1706 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1930
Name
Milling Indexable Inserts
FamilyName
SNMU/SNHU1706
BrandName
Tungaloy
