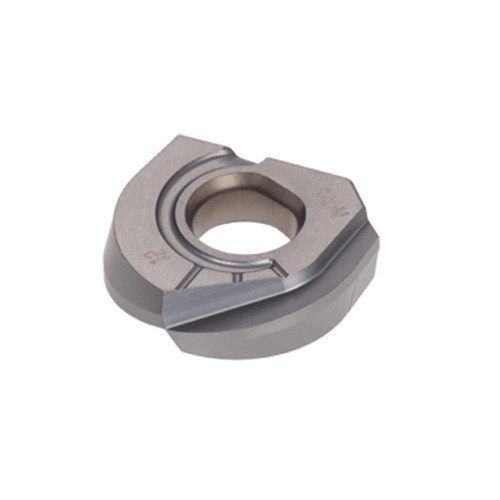

ZFBM200R00-MJ AH710
Ball nose type inserts with MJ chipbreaker for general puropse. Suitable for finishing and three-dimensional milling of die & mold.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profile Milling | | Tool Type | Single sided Inserts |

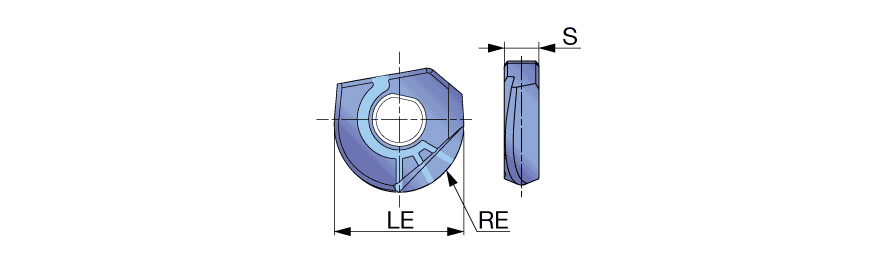

| Corner Radius (RE) | 10 mm | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Edge Effective Length (LE) | 20 mm |
| Inscribed Circle Diameter (IC) | 20 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5.4 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH710 |
Product Features
| Family Description | Ball nose type inserts with MJ chipbreaker for general puropse. Suitable for finishing and three-dimensional milling of die & mold. | FamilyName | ZFB-MJ |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0220
Name
Milling Indexable Inserts
FamilyName
ZFB-MJ
BrandName
Tungaloy
