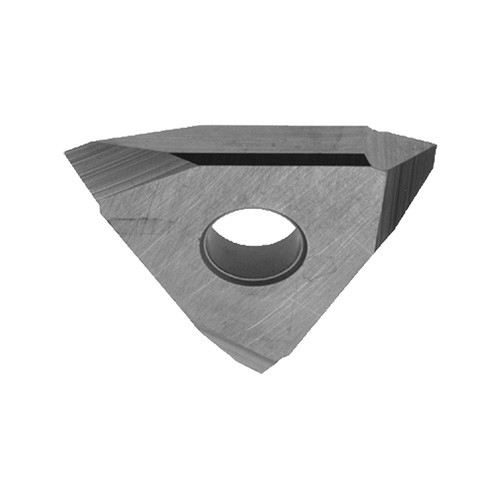

TTR42M-005 TH10

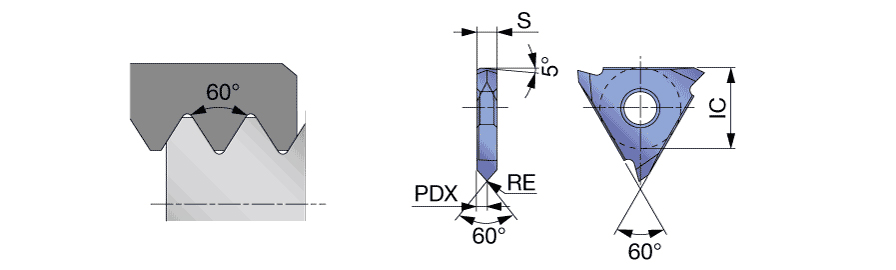

TT type External & internal 60 deg, Partial profile, Pitch 3 mm or under
| Corner Radius (RE) | 0.05 mm | Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 3.2 mm | Thread Pitch Maximum (TPX) | 3 mm |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Threading Regular Inserts |
| Grade | TH10 | Threads per Inch Maximum (TPIX) | 8 |
| Coating | Uncoated | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Inserts | |
Product Features
| Family Description | TT type External & internal 60 deg, Partial profile, Pitch 3 mm or under | FamilyName | TTR/L42M |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0630
Name
On-Edge Threading Indexable Inserts
FamilyName
TTR/L42M
BrandName
Tungaloy
