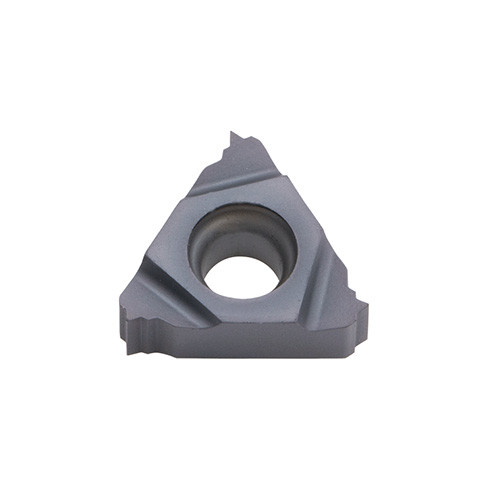

11IR10MJ AH8015

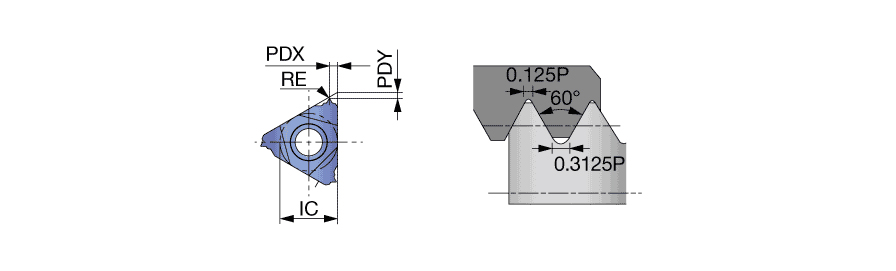

Internal MJ metric, Full profile
| Thread Pitch (TP) | 1 mm | Application | | Inserts | |
| Threads per Inch (TPI) | 25.4 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.05 mm | Tool Type | Threading Regular Inserts |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Grade | AH8015 | Body Material | Carbide |
| Coating | AlTiN | Insert Length (INSL) | 11 mm |
| Cutting Edge Material | Carbide | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal MJ metric, Full profile | FamilyName | IR/L-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0210
Name
On-Edge Threading Indexable Inserts
FamilyName
IR/L-MJ
BrandName
Tungaloy
