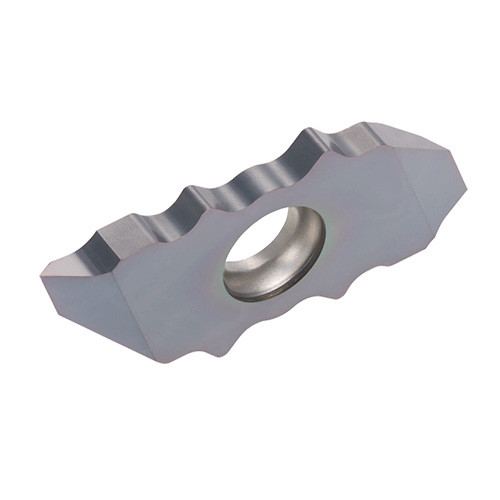

JXTG12FR-60A-005 SH725

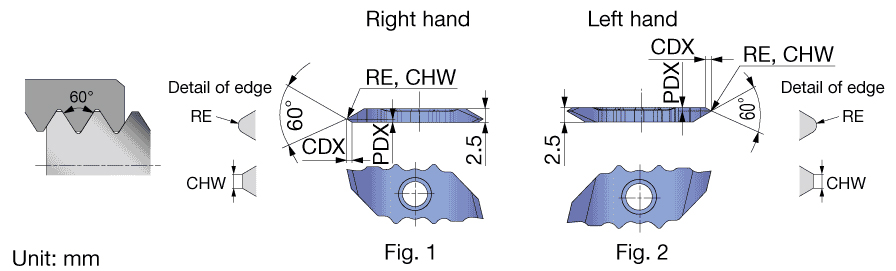

Double-ended threading insert, external 60 deg thread angle, partial profile, sharp edge.
| Corner Radius (RE) | 0.05 mm | Thread Pitch Maximum (TPX) | 1 mm |
| Grade | SH725 | Threads per Inch Maximum (TPIX) | 64 |
| Coating | TiAlN | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Inserts | | Insert Length (INSL) | 25 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Unit | M |
| Thread Pitch Minimum (TPN) | 0.4 mm |
Product Features
| Family Description | Double-ended threading insert, external 60 deg thread angle, partial profile, sharp edge. | FamilyName | JXTG12FR/L-60 |
| Remarks | JXTG12... 000 has a flat top of max 0.05 mm. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0540
Name
On-Edge Threading Indexable Inserts
FamilyName
JXTG12FR/L-60
BrandName
Tungaloy
